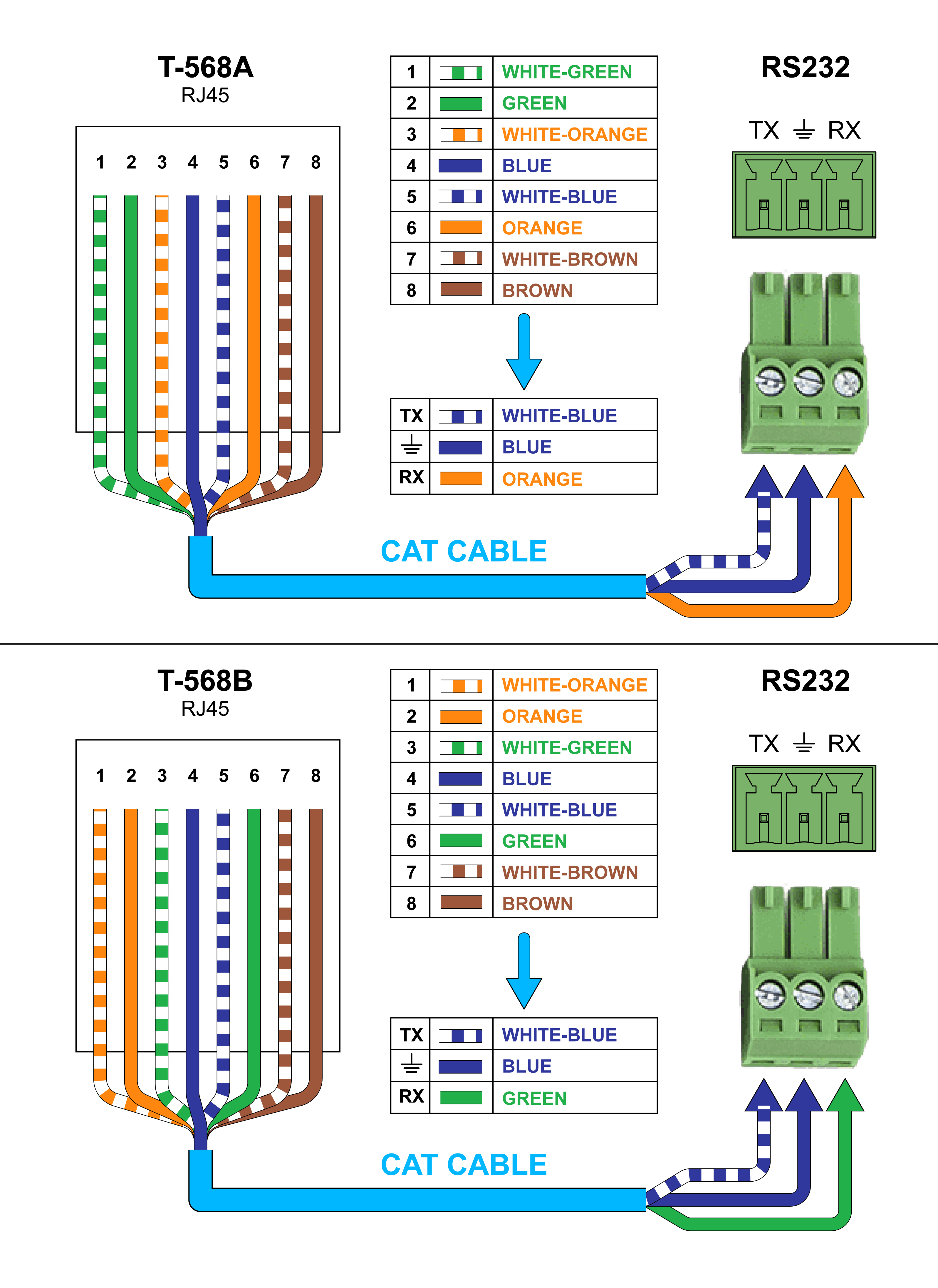

Savant RJ45 RS232 to AVPro Edge 3 Pin RS232

[Savant] RS232 (RJ45) to RS232 (3 Pin Phoenix) Pinout - SHC/SHR Series Controllers
