Introduction

A Pixel-Perfect video wall is display technology utilized by MXNet where multiple screens are arranged in a tiled pattern to create a single large display surface, typically within a Multiview. Each screen in the video wall is calibrated and adjusted so that the pixels on all screens match each other perfectly, creating a seamless and uniform display.

With AVPro's MXNet 10G SDVoE system, a pixel-perfect video wall can be constructed in the Mentor web UI where each pixel of every individual screen is aligned precisely with the pixels of the adjacent screens, and they all have the same brightness and color, creating a seamless image without any visual distortions or gaps.

Pixel-perfect video walls are commonly used in commercial settings, such as digital signage, control rooms, broadcast studios, and entertainment venues. They can display high-quality images, videos, and interactive content, making them ideal for creating immersive and engaging visual experiences for large audiences.

For more information on how to create a Multiview in general using the MXNet 10G SDVoE system, see this KB article.

Video Wall Modes

The MXNet 10G SDVoE system is capable of displaying a Multiview video wall in 2 different modes, selectable from the Video Wall Multi-View page within Mentor.

      Genlock Wall Mode

  1. All video wall decoders are synchronized (time-locked) to the source and also each other.
  2. Does not do Fast Switch or Frame Rate Conversion
  3. Better video quality than Fast Switch mode.

      Fast Switch Wall Mode

  1. Source changes on the video wall instantaneously
  2. One frame delay

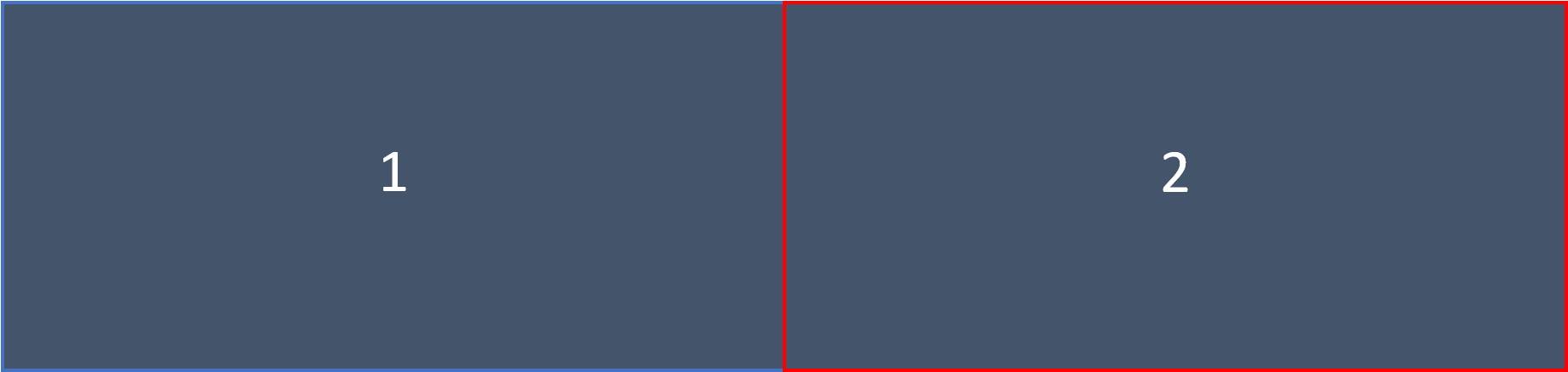

32:9 3840x1080p60 Dual-FHD (1 Row x 2 Column) Video Wall

Input Source - 32:9 3840x1080p60


1 Row x 2 Column Video Wall - Display Resolution: 1920x1080p60

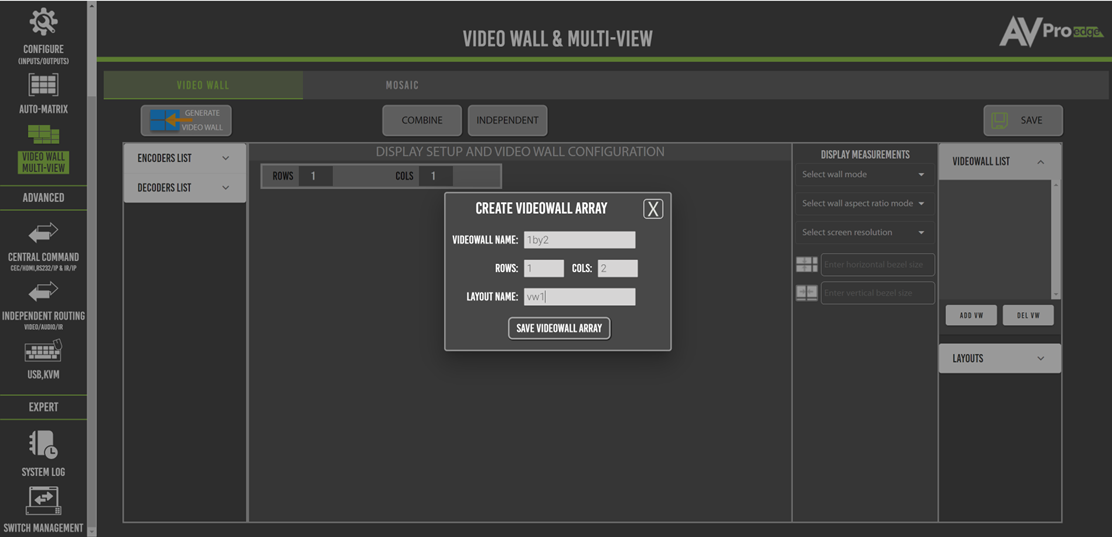

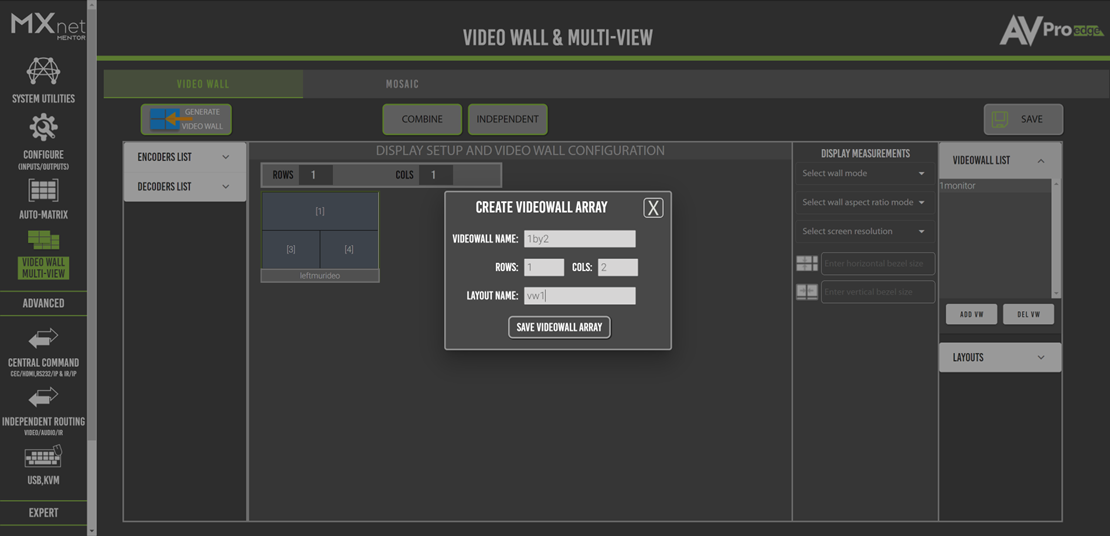

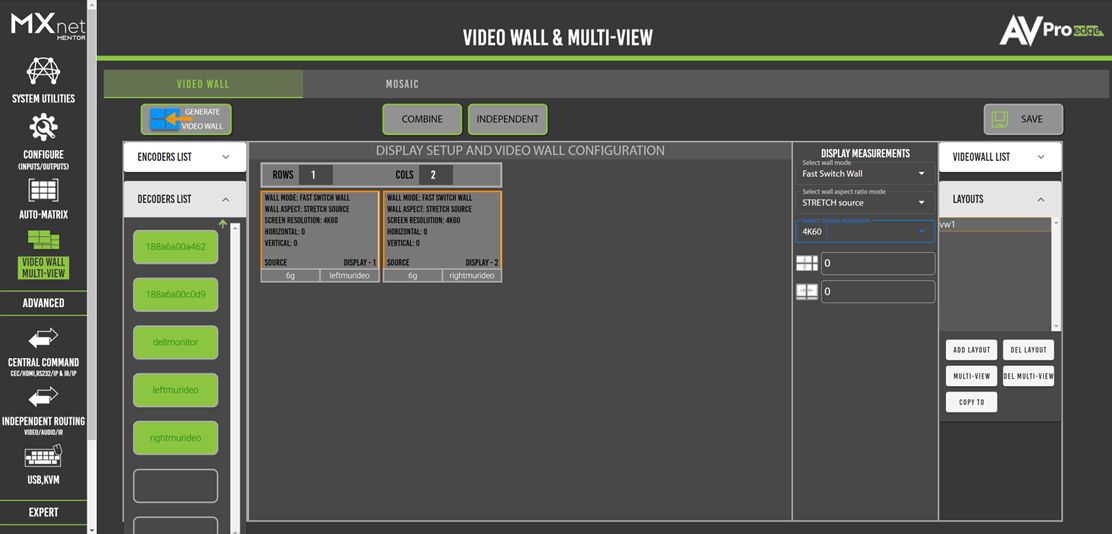

1. In the Mentor web UI, go to the Video Wall Multi-View page screen, then select add vw under the Videowall List dropdown menu. Enter in the videowall name, number of rows and columns, and the layout name. Then select the save videowall array button.


2. Mentor will then generate the "tiles" of the video wall layout with the previously created array now appearing under the Display Setup and Video Wall Configuration window.

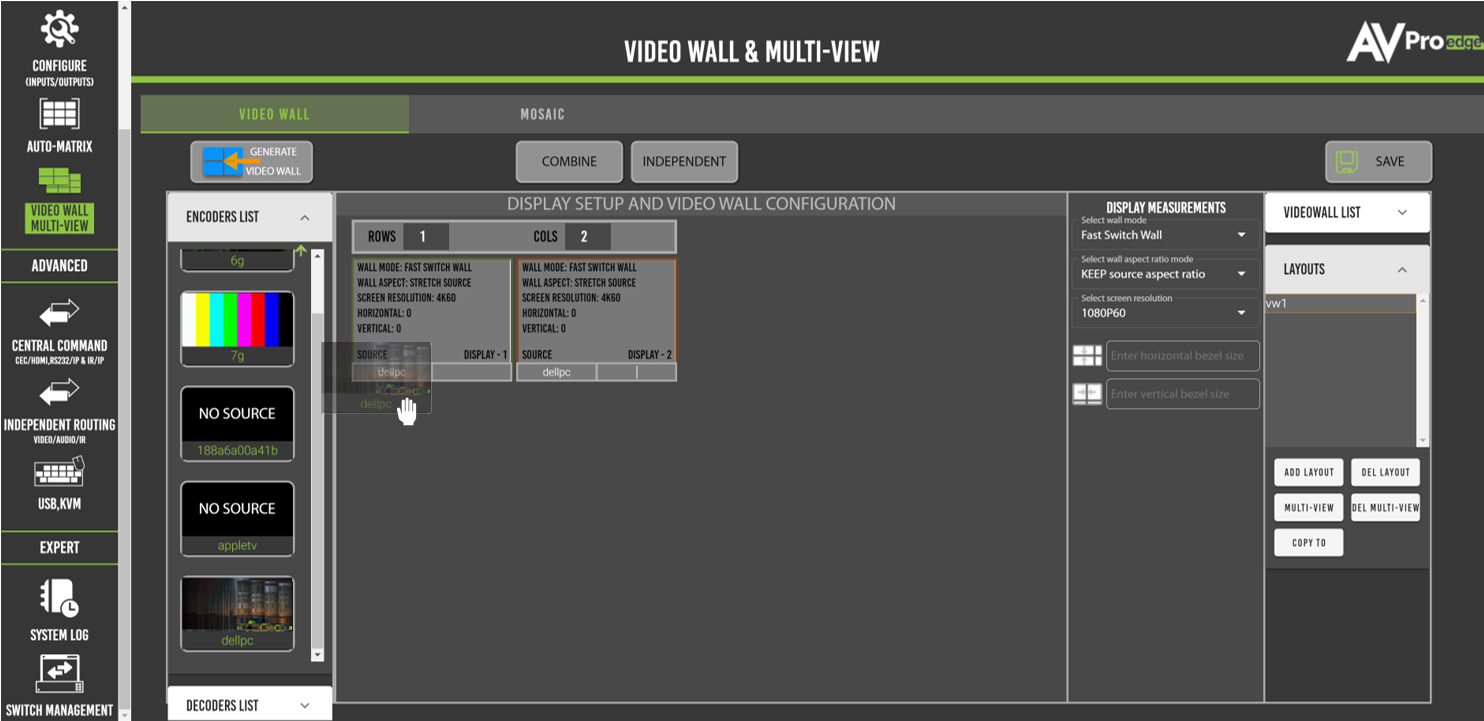

3. Select the source by clicking and dragging the source's thumbnail located under the Encoders List dropdown menu and dropping it onto a tile. The assigned source's custom name will then appear in the bottom-left corner of the tile.

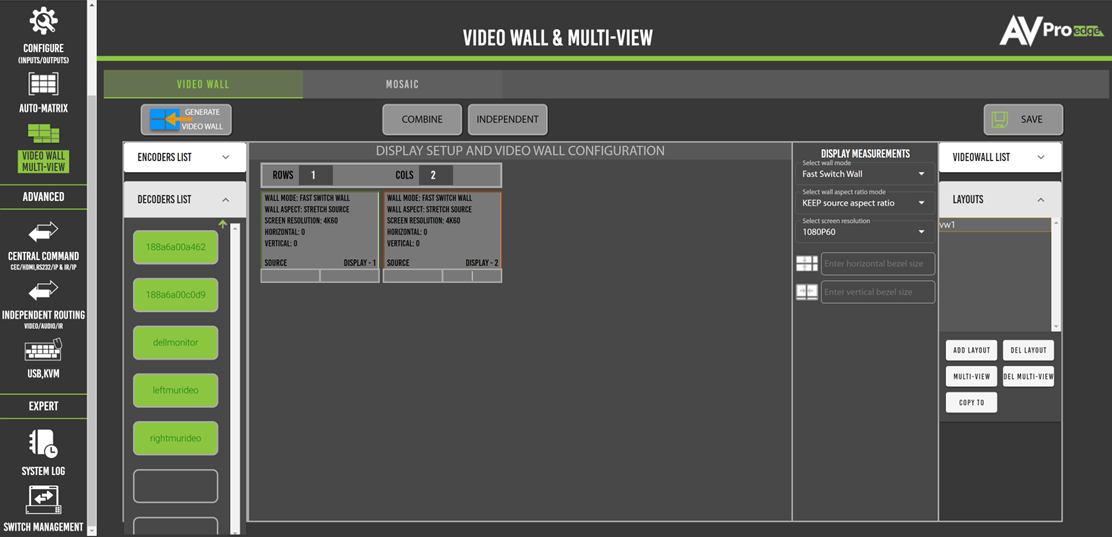

4. Select the displays by clicking and dragging the display's thumbnail located under the Decoders List dropdown menu and dropping it onto a tile. The assigned display's custom name will then appear in the bottom-right corner of the tile.


5. Select all the tiles, indicated by an orange highlighted border, then select the combine and generate video wall buttons to activate the Multiview layout.

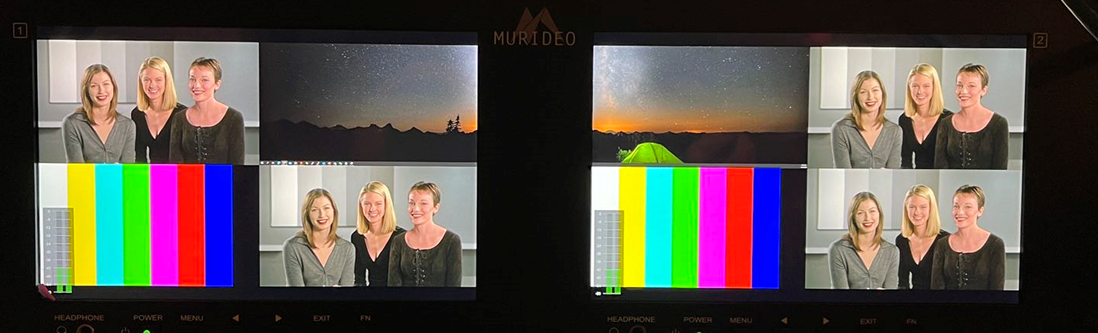

Create a Cross Screen Multiview on a 1-by-2 Video Wall (A)

1 Row x 2 Column Video Wall - Display Resolution: 1920x1080p60

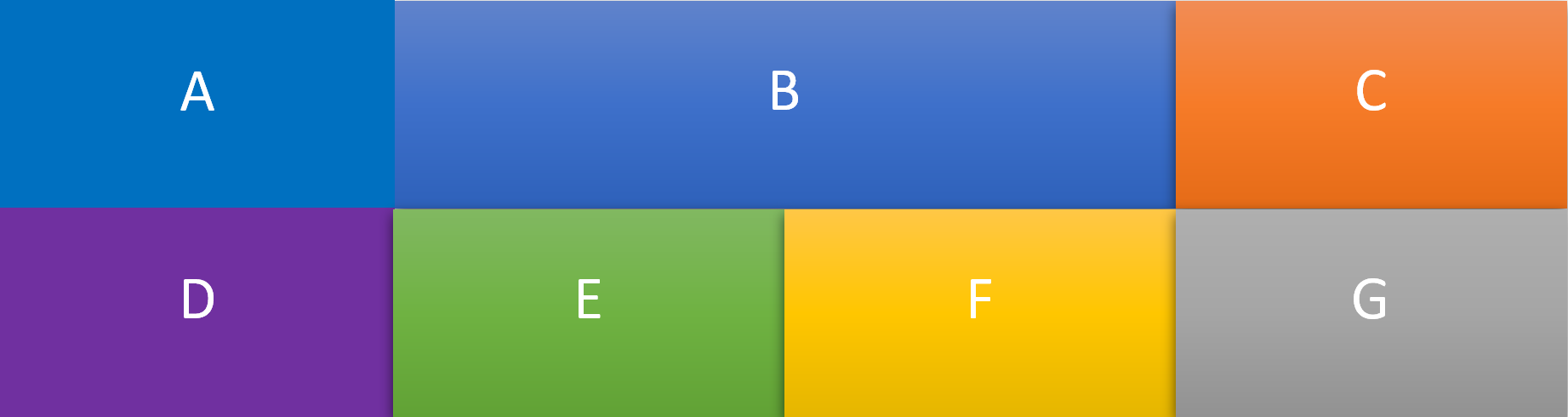

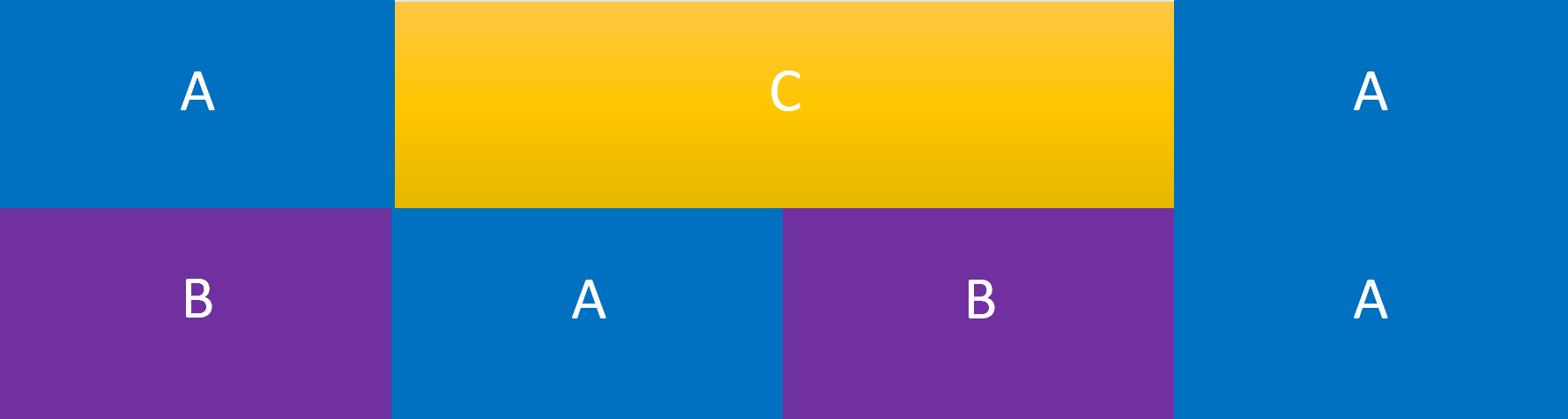

Input Source B - Cross Screen Multiview Layout



1. Enter in the videowall name, number of rows and columns, and the layout name. Then select the save videowall array button.


2. Mentor will then generate the "tiles" of the video wall layout with the previously created array now appearing under the Display Setup and Video Wall Configuration window, highlighted in orange.

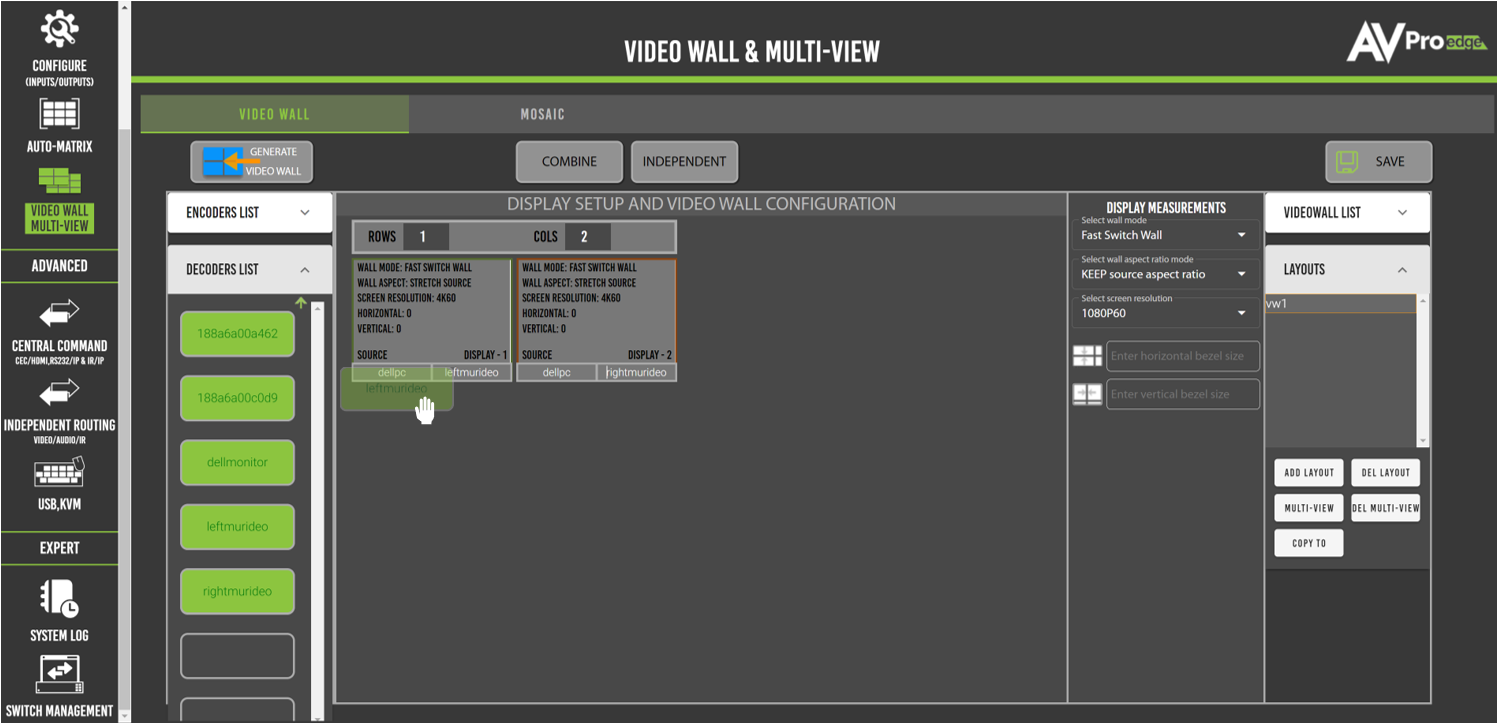

3. Select the sources and displays by clicking and dragging their thumbnails located under the Encoders/Decoders List dropdown menus and dropping them onto a tile. The assigned source/display's custom name will then appear in the bottom corners of the tile.

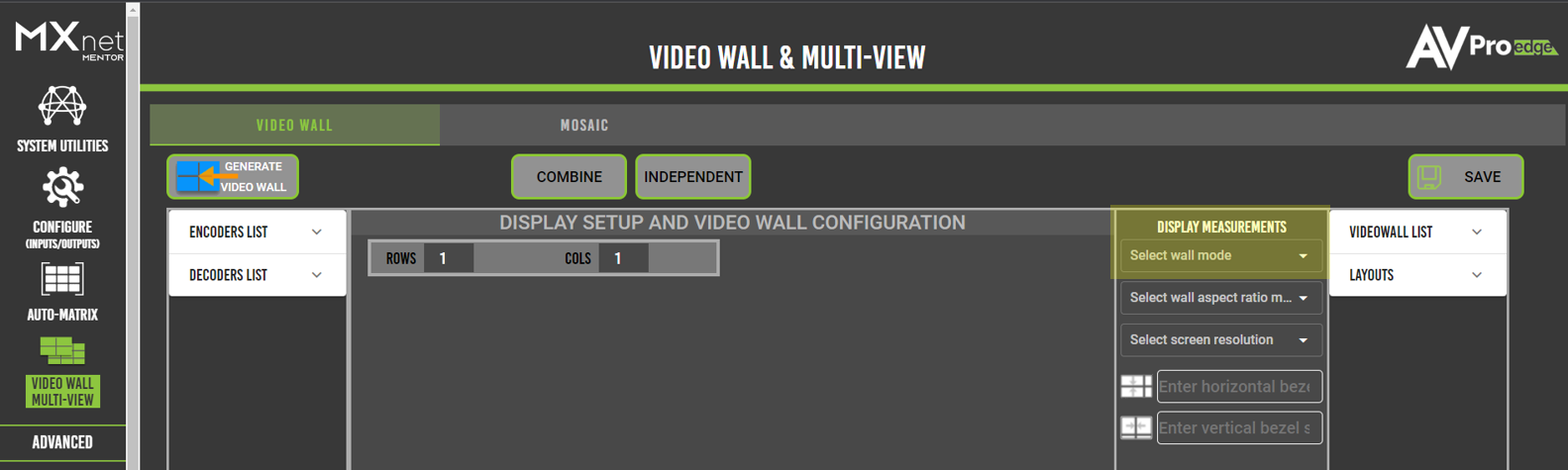

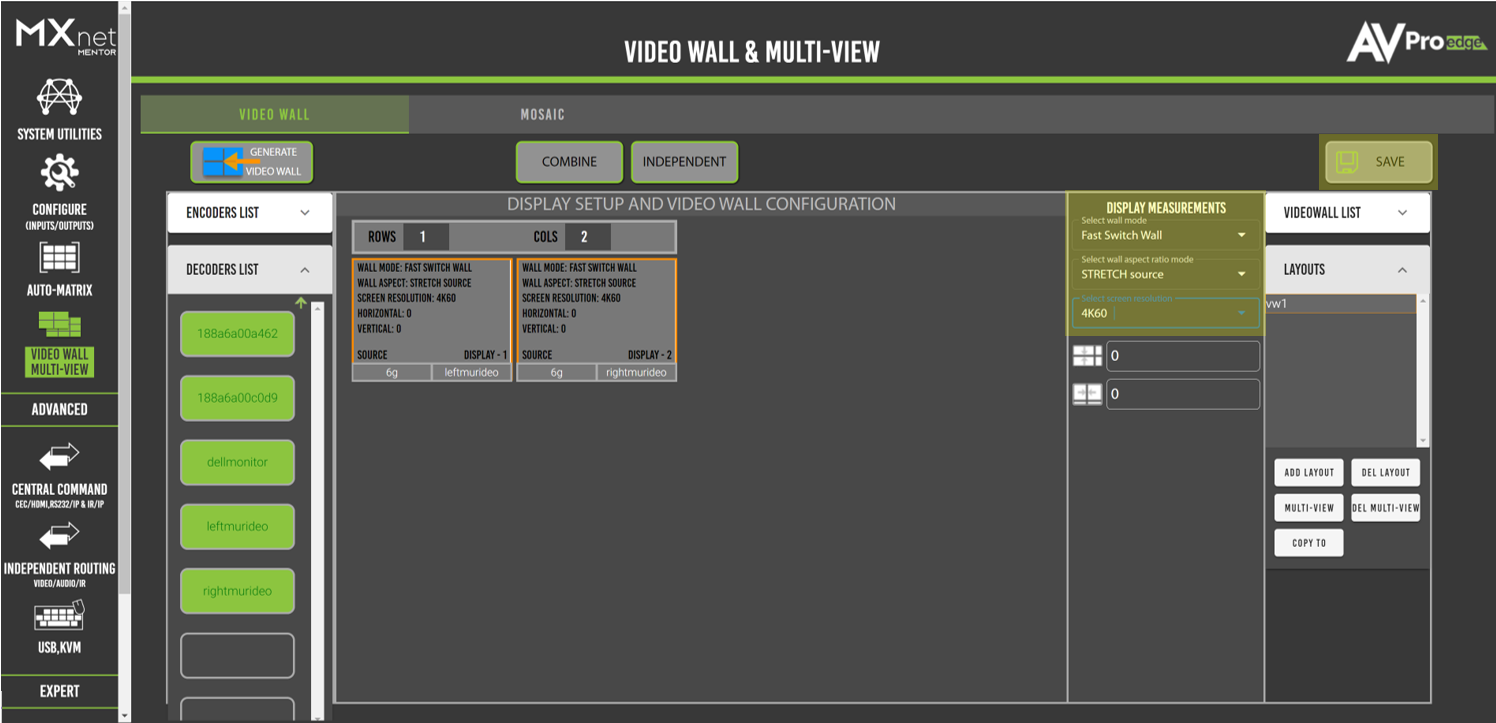

4. You can set the video wall mode, aspect ratio, and display resolution from the following dropdown menus. Select the save button for changes to take effect.


5. Select the combine and generate video wall buttons to activate the Multiview.




Create a Cross Screen Multiview on a 1-by-2 Video Wall (B)

1 Row x 2 Column Video Wall - Display Resolution: 1920x1080p60

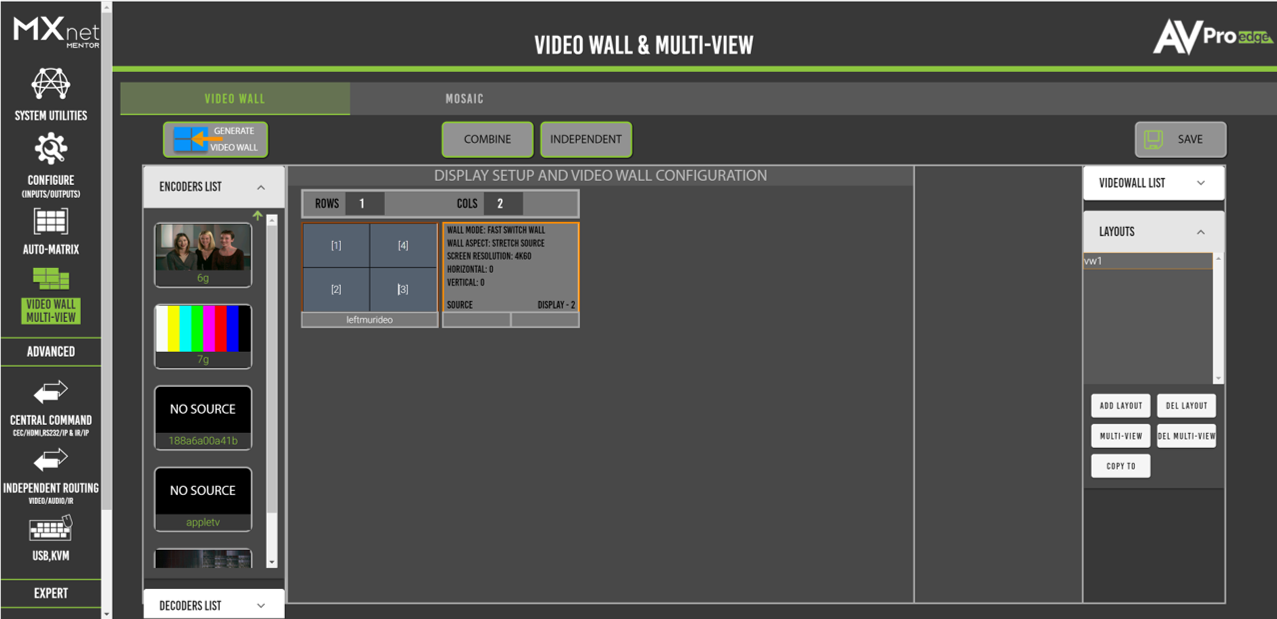

1. Select the left tile. In this example, the tile labeled "leftmurideo" is highlighted with an orange border to indicate the selection was made.


2. Next, select the multi-view button under the Layouts dropdown menu. This will open the Multiview Configuration screen.

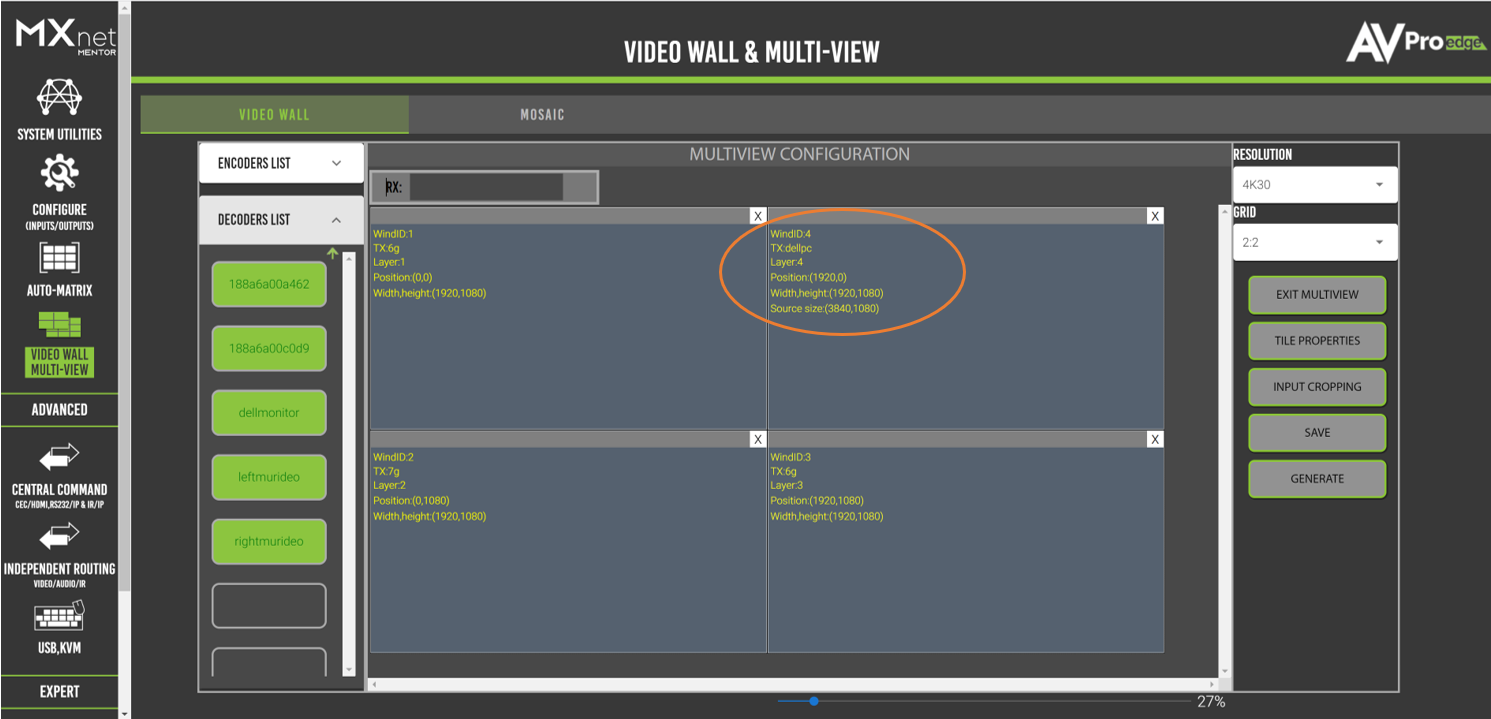

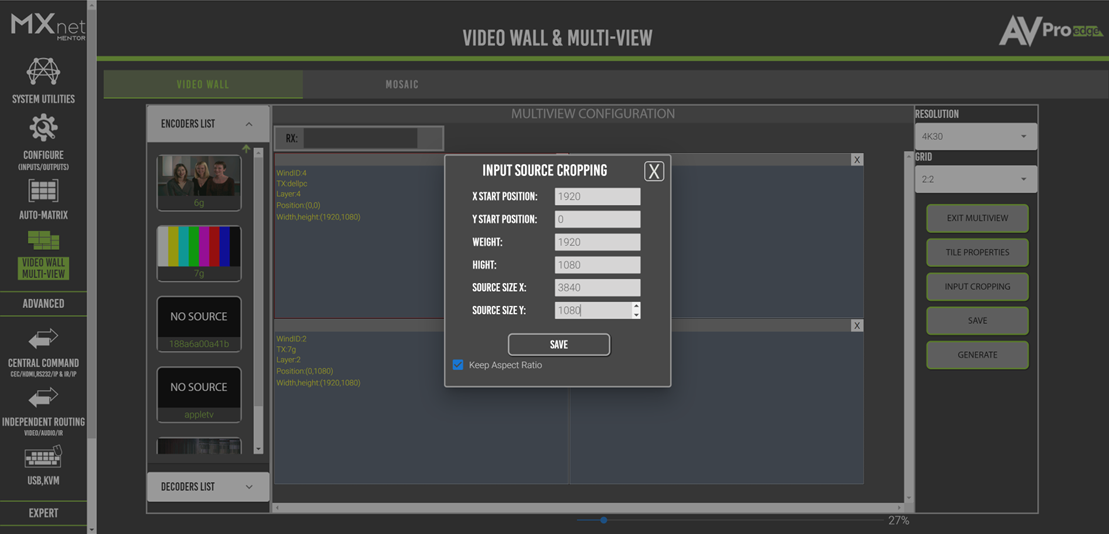

3. Once you're in the Multiview Configuration screen, right-click on a tile and select input cropping. Enter in the following coordinates for the tile and select the keep aspect ratio check box. Then select the save button to apply changes and settings to the tile.


4. The information entered in from the previous step will now appear in the top-left corner of the tile it was assigned to.


5. Now, do the same steps for the other tile. In this example, the tile labeled "rightmurideo" is highlighted with an orange border to indicate the selection was made.


6. Right-click on the tile and select input cropping. Then select the save button to apply changes and settings to the tile.

7. The information entered in from the previous step will now appear in the top-left corner of the tile it was assigned to.


8. Select the exit multiview button to go back to the Display Setup and Video Wall Configuration page. Both tiles are now configured for cross-screen. Select the independent and generate video wall buttons to activate the Multiview.







How to Upload an Ultra-Wide 32:9 User EDID

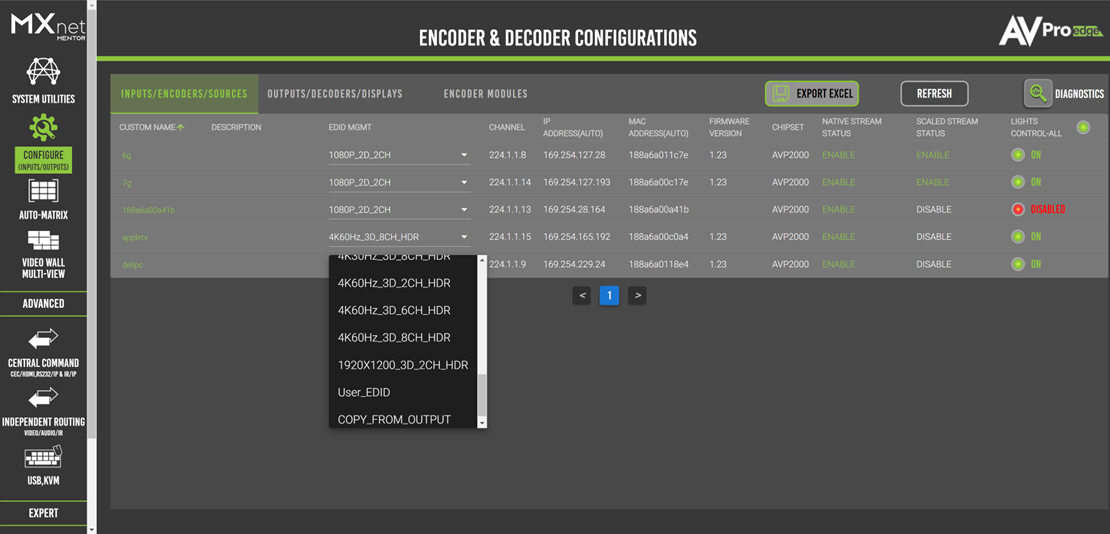

1. In the Configure (Inputs/Outputs) page within Mentor, navigate to the EDID MGMT column for the source you wish to create a 32:9 aspect ratio for, then select the User_EDID option from the dropdown menu.

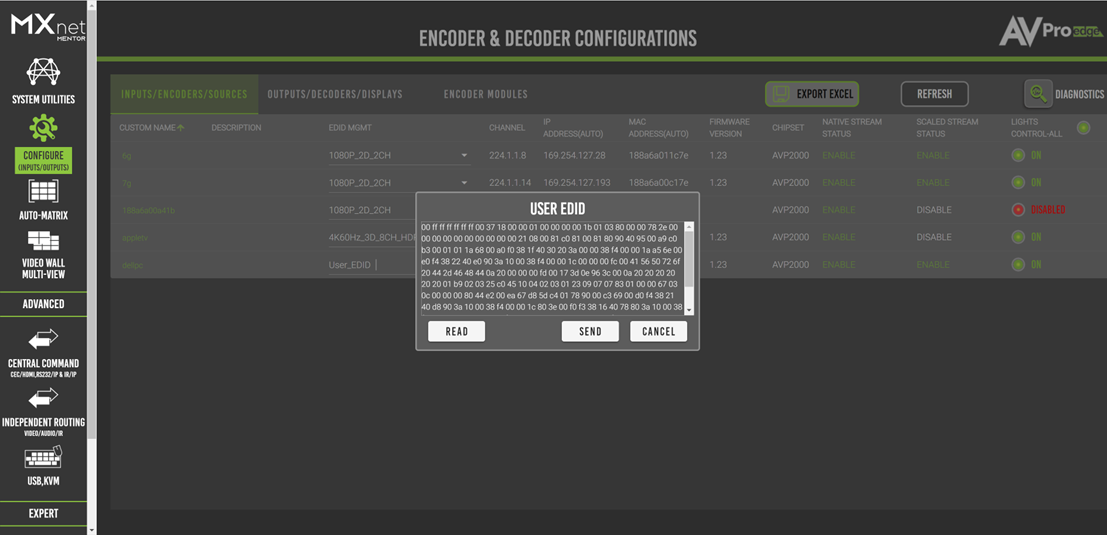

2. This will open the USER EDID menu. Simply copy and paste the EDID with the 32:9 aspect ratio into the main body of the window (as HEX codes).


(See the attachment at the bottom of this page for the EDID file)


Below shows the User EDID information from the API after enabling the User EDID in Mentor.

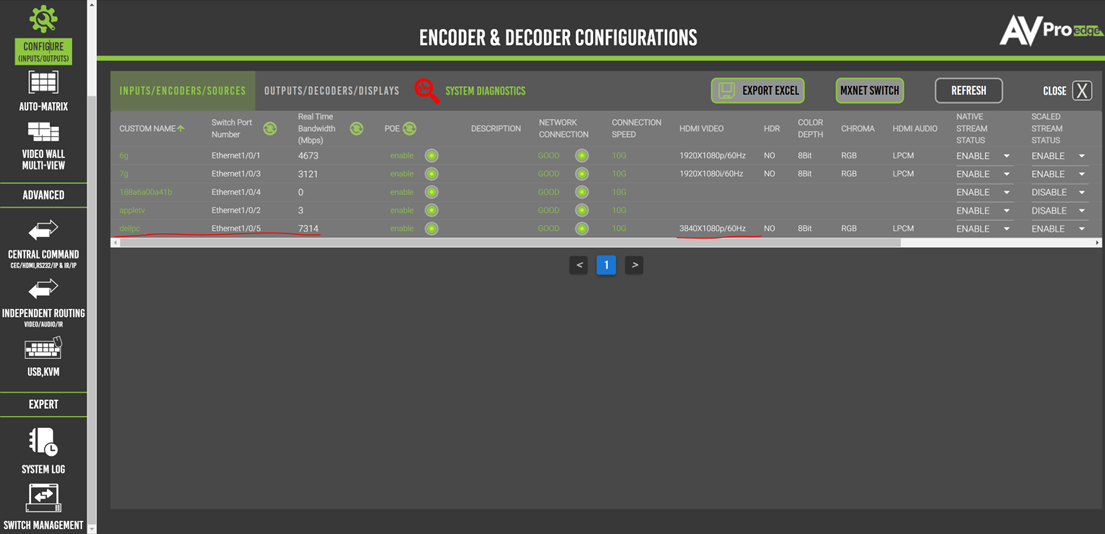

3. The source's resolution now shows as 3840x1080p within Mentor.
