Button Press Combos for the AC-MX-44(HDBT), AC-MX-88(HDBT), AXION, and most legacy Matrices

Button Press Combos for the AC-MX-44(HDBT), AC-MX-88(HDBT), AXION, and most legacy Matrices

DHCP Toggle

Hold Inputs 1 and 4 for 5 Seconds


IP Information (IPv4, Gateway, Netmask, TCP Port, DHCP Status)

Hold Inputs 3 and 4 for 5 Seconds


Firmware Version(s)

Hold Inputs 2 and 4 for 5 Seconds

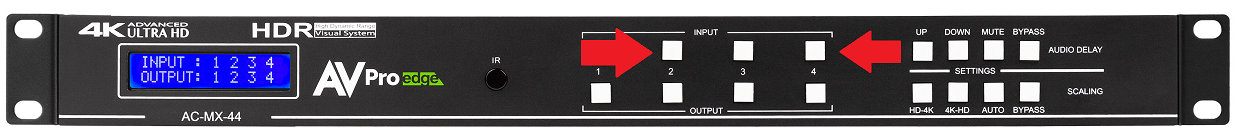

Key Lock Toggle

Hold Inputs 2 and 3 for 5 Seconds

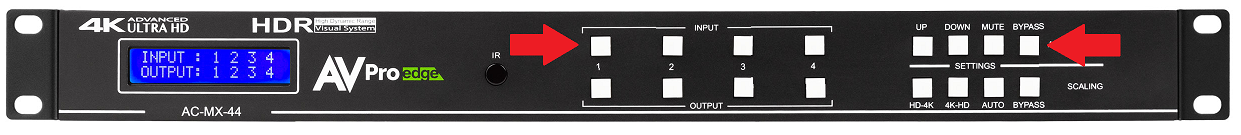

Factory Reset (Non AXION Units)

Hold Input 1 and Audio Delay - Bypass for 5 Seconds

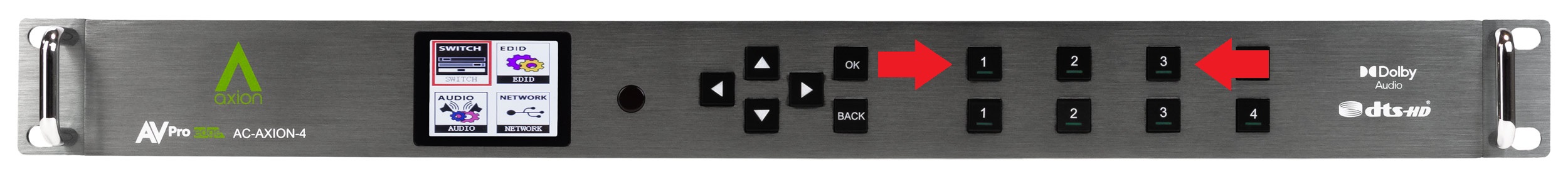

Factory Reset (AXION Units)

Hold Input 1 and 3 for 5 Seconds (Use the Arrow Keys and OK to Select Yes/No when prompted)
