AC-AEX-DEARC-T Firmware Update version v1.15
Newest firmware for the AC-AEX-DEARC-T:
Main MCU Ver 1.15
FPGA Ver 0.11
- Bypassing all CEC commands is supported on PCB05 and later
- Fixed ARC Initialization
Requirements:
- Windows PC
- USB-A to USB-C data cable for direct serial connection
- Firmware FWM file and Uploader (see attachments at the bottom of this page)
- CH340 USB Serial Driver (direct download link here)
- Windows PC
- USB-A to USB-C data cable for direct serial connection
- Firmware FWM file and Uploader (see attachments at the bottom of this page)
- CH340 USB Serial Driver (direct download link here)

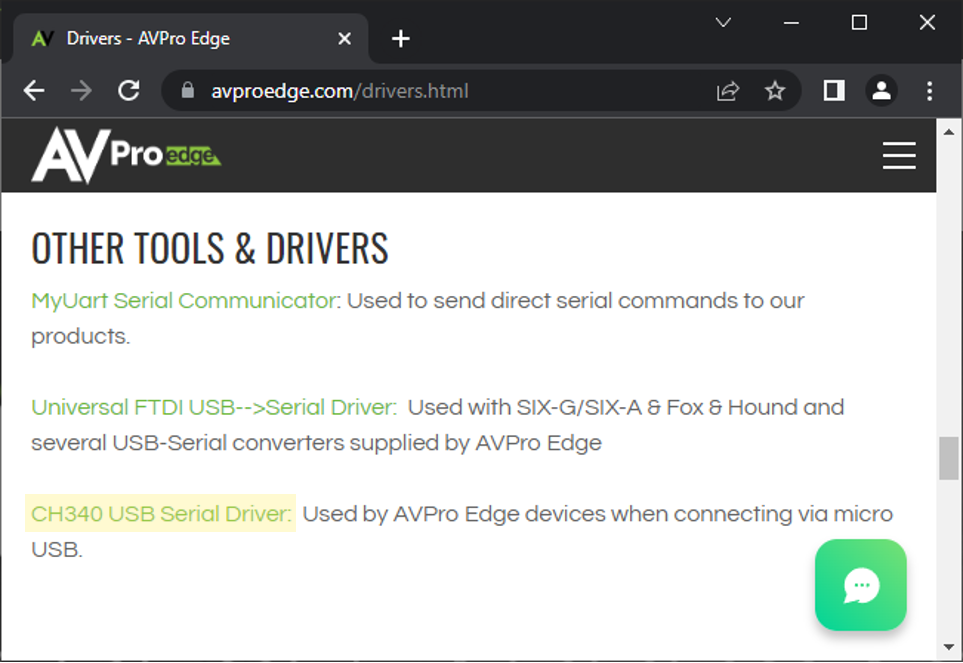

1. Connect your PC directly to the USB-C POWER / CTRL port on the AC-AEX-DEARC-T using the USB-A to USB-C cable. Download and install the CH340 USB Serial Driver onto your PC using the link above.

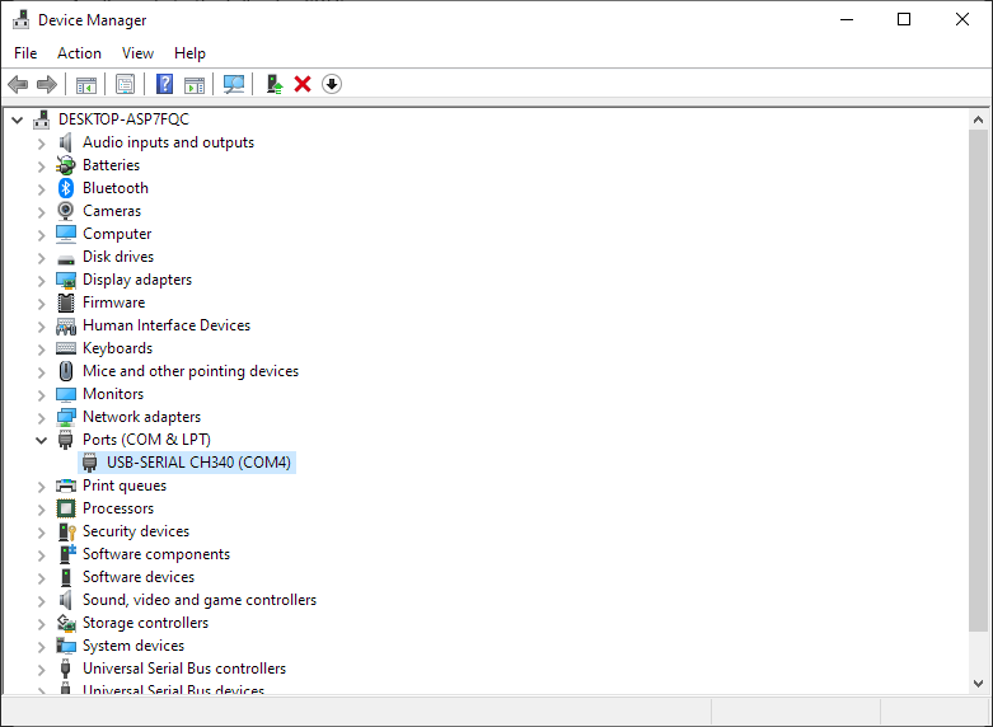

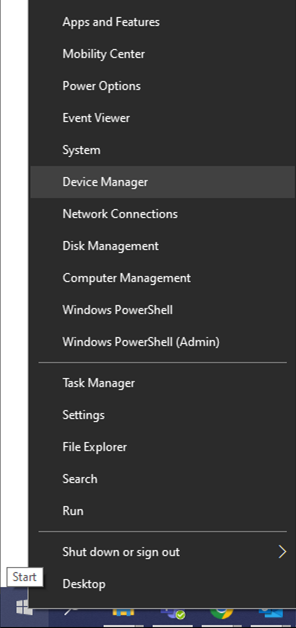

2. Right-click on the Windows Start button and select Device Manager.
Then select the Ports (COM & LPT) drop-down menu and locate the port labeled USB-SERIAL CH340 (COMx) to confirm the AEX-DEARC-T is connected to the PC.

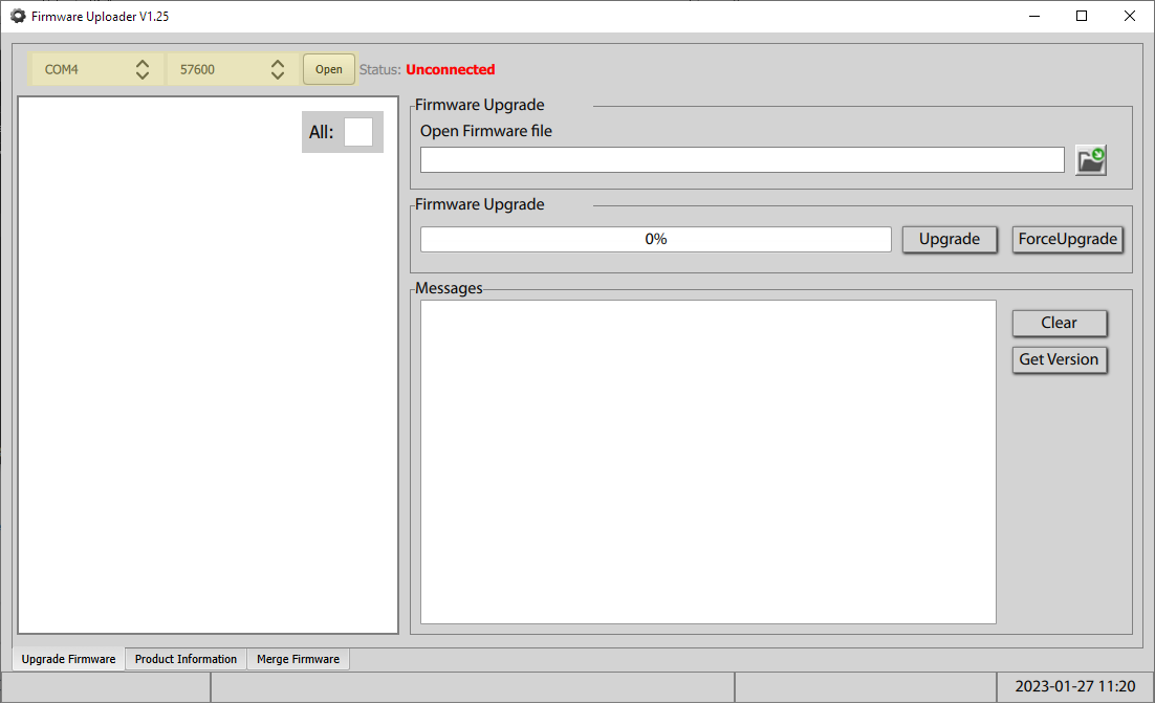

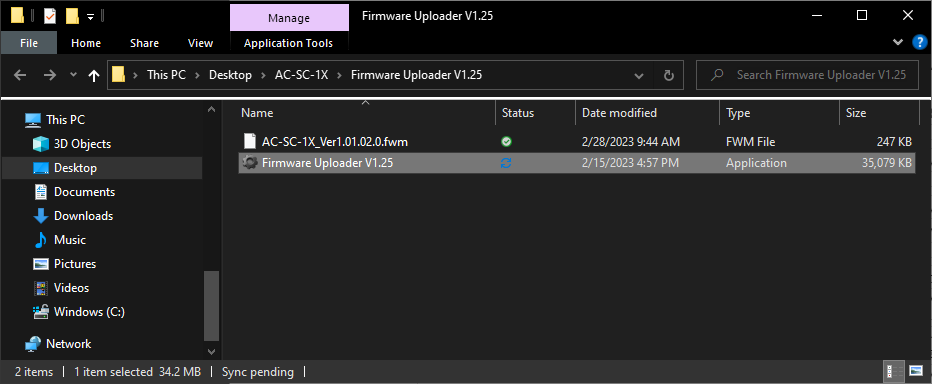

3. Open the Firmware Uploader V1.25.
Select the correct COM, Baud: 57600, and select the Open button
to open the port.
The Status will now show as Connected in green text with COMx connect success under Messages.

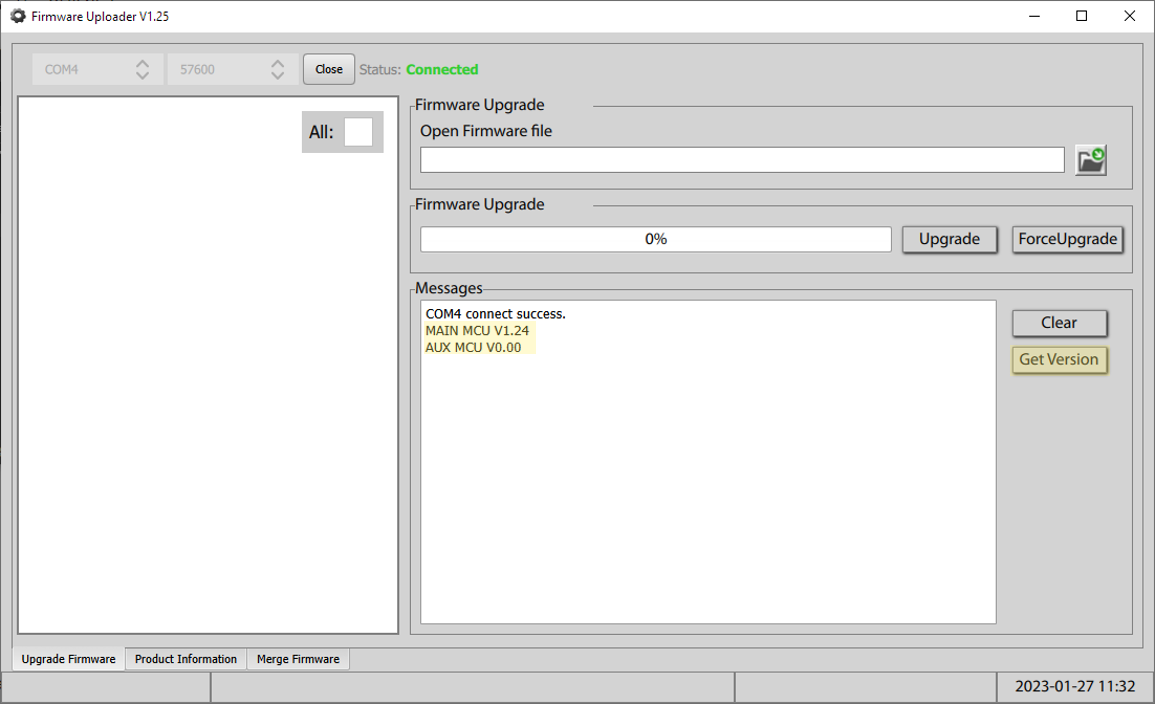

4. Select the Get Version button to see the current firmware version on the AEX-DEARC-T (note: screenshot below is only an example and may not display the exact version).

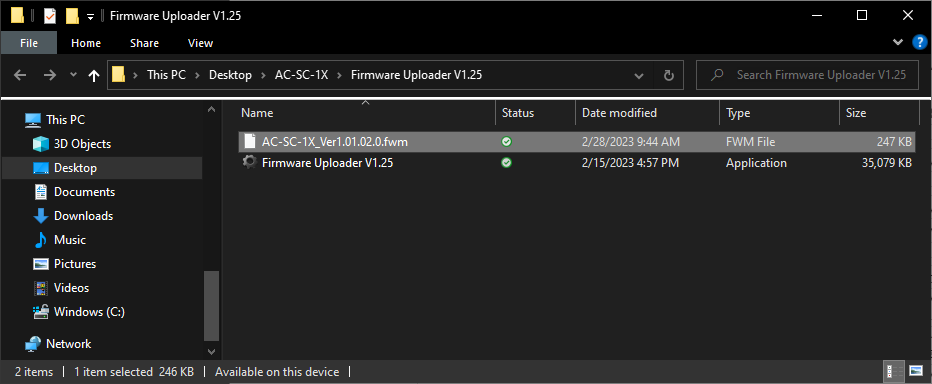

5. Select the file button
to load the firmware file. Make sure to select the correct firmware file for the device you are currently updating.

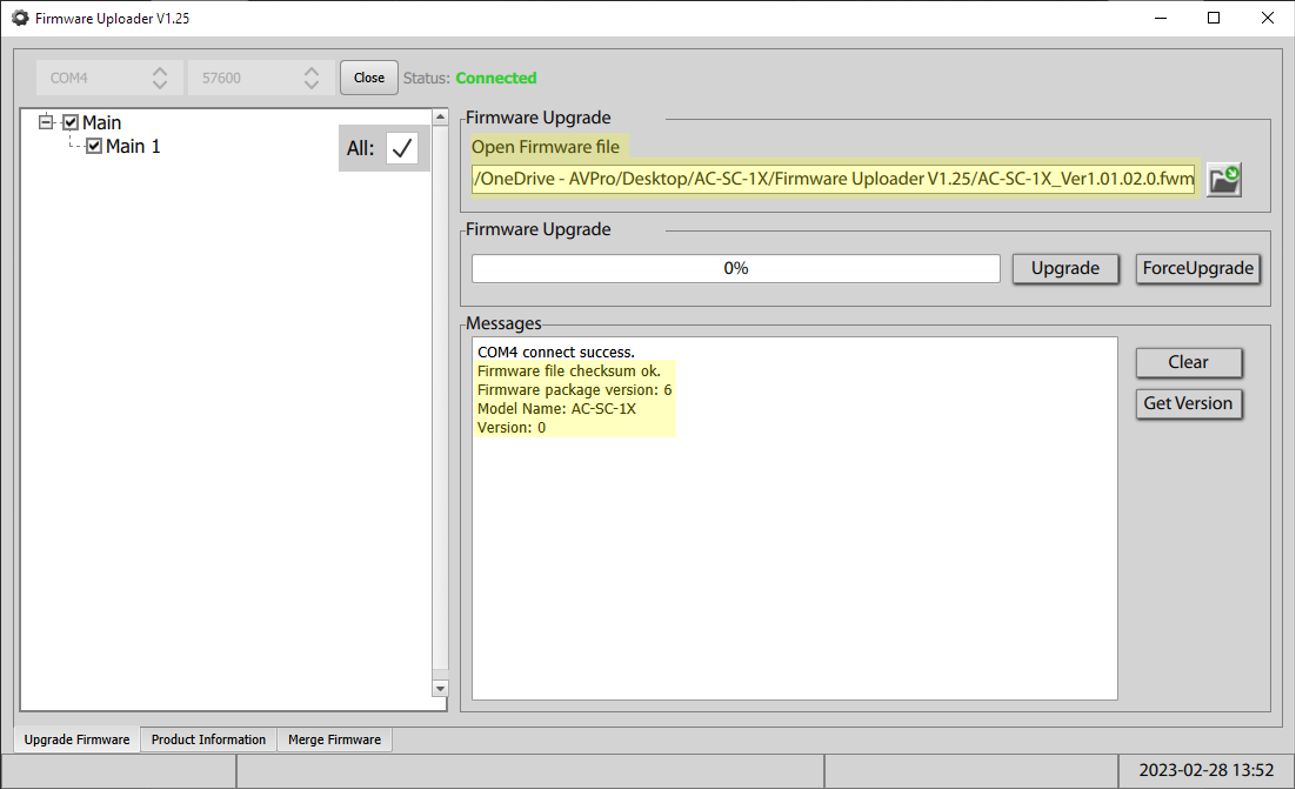

The firmware file will be loaded into the Open Firmware file field with the following information under Messages:
6. Select the Upgrade button to start the firmware update. The loading bar will pause at 99% for a few seconds before automatically rebooting the unit. Do not use the ForceUpgrade button. If the Uploader is not updating firmware for any reason, please contact AVPro Edge Tech Support to assist in troubleshooting your DEARC Transmitter.
7. Once the loading bar reaches 100%, use the Get Version button again to ensure the new firmware version is correct (note: screenshot below is only an example and may not display the exact version).
8. Select the Close button
to close the port, then select the X at the top to exit the Uploader. The AC-AEX-DEARC-T is now up to date on its firmware and is safe to disconnect from your PC and power.
