10G MXNet SUI Diagrams
AC-MXNET-10G-TCVR-PRO SUI USB
The AC-MXNET-10G-TCVR-PRO features the built-in Icron™
USB module implemented with the latest Icron™
USB firmware (1.9.4) and supports SUI USB pairing mode, meaning that one USB Tx can simultaneously connect to up to seven USB Rx devices.

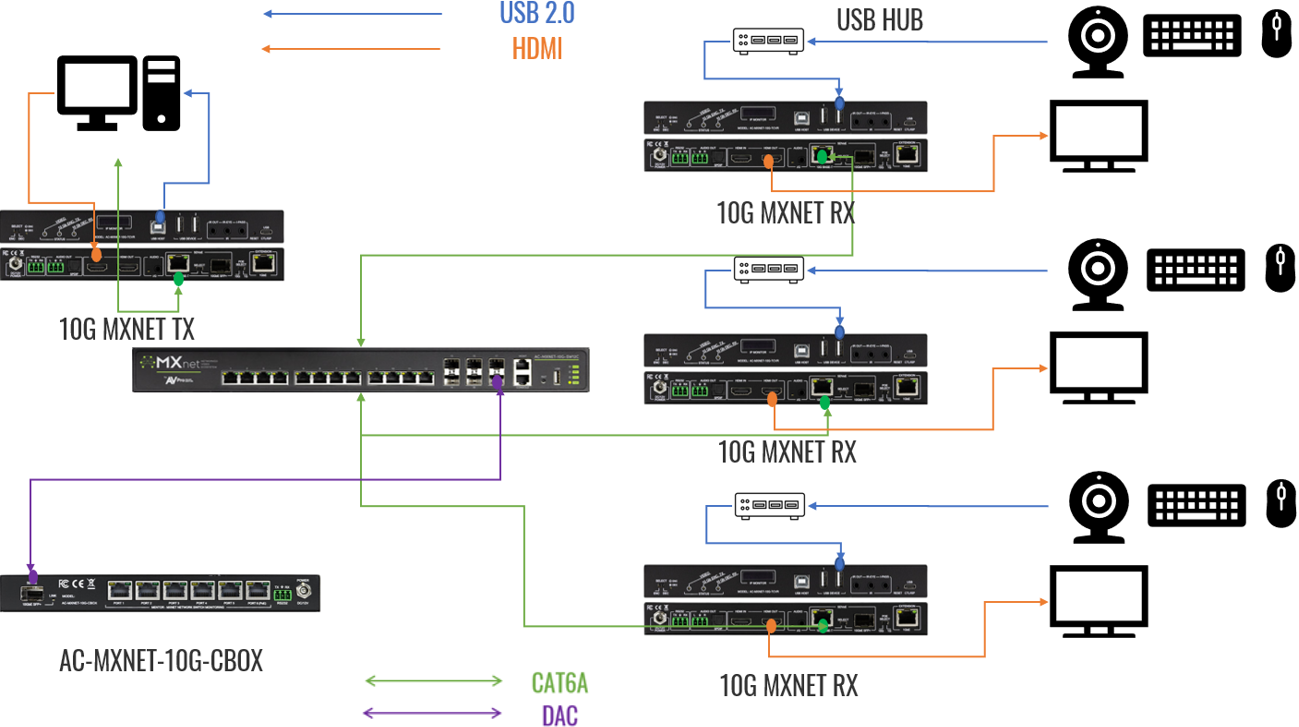

SUI stands for Simultaneous USB Interactive. In general, USB pairing mode only supports one Tx to one Rx, but SUI supports one Tx and multiple Rx's. See the following diagrams below.
The SUI feature is very useful for control rooms or conference rooms, and users may need a PC to remotely connect to several full-bandwidth USB 2.0 cameras, keyboards, and mice.
